無線網路模組
無線網路模組

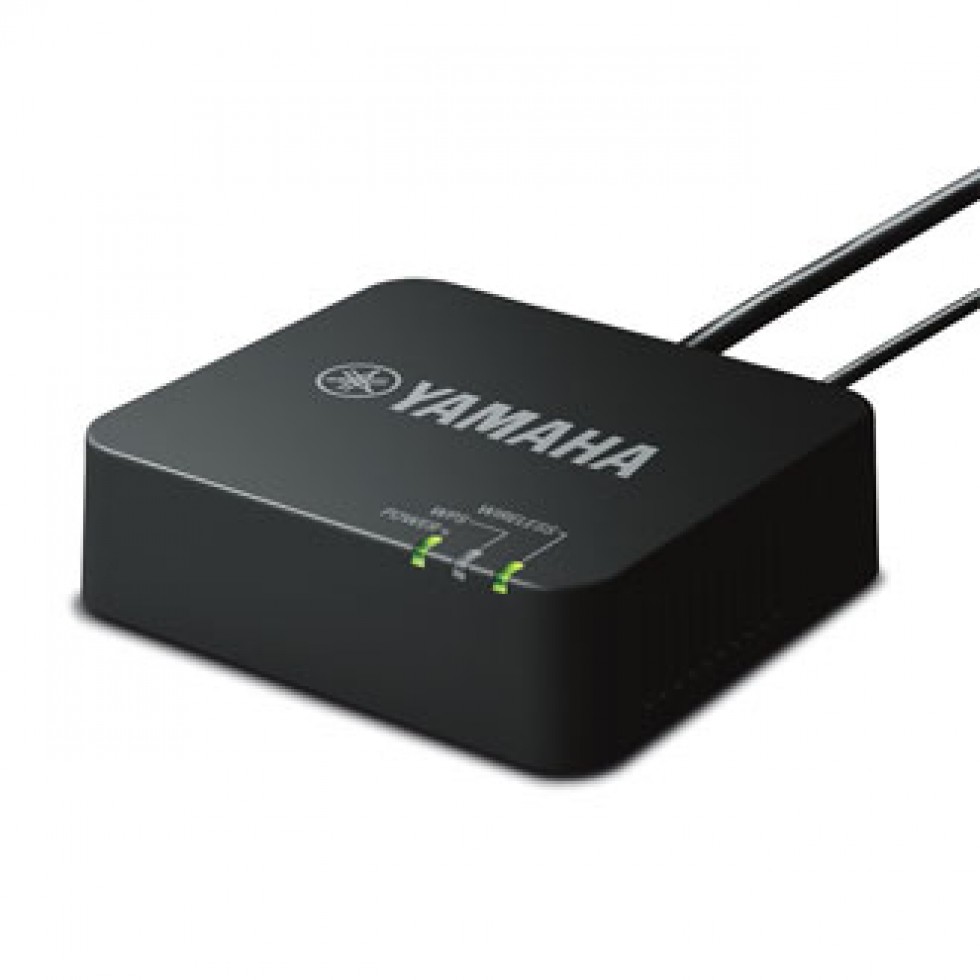

YWA-10

 Wireless Network Adapter




The Yamaha YWA-10 wireless network adapter can be used to connect a Yamaha network AV receiver to a wireless home network. The YWA-10 connects to the Ethernet port on the back of your Yamaha network receiver and communicates directly with your wireless router. It's powered by the DC out jack or USB port of the receiver, so there is no need to take up an additional electrical outlet. The YWA-10 even has a second Ethernet output that can be used to provide network access to another device such as a Smart TV or Blu-ray Disc™ player.
分享到twitter 分享到plurk 分享到facebook
dot 商品市價  :  ＄3,990
dot 網路售價 :

＄3,990
dot 門市特價  :  門市特價中，歡迎來店詢問
spacer   立即搶購
dot商品說明


Features

Main Features

• Wireless Network Adapter
• IEEE 802.11b/g/n compatible
• Auto setup by WPS (Wi-Fi Protected Setup)
• Manual setup by PC
• Two LAN ports to support up to two network products
• Power supply via USB from certain Yamaha models

Dimensions

3-1/8" x 2-3/4" x 7/8" ; 0.1 lbs.

Compatible Models

Compatible with all network devices with an Ethernet/LAN output and USB port for power. Includes, but not limited to, the following:

HTR-4066
TSR-6750WA (YWA-10 included)
RX-A730, RX-A830, RX-A1030, RX-A2030, RX-A3030
RX-V375, RX-V475, RX-V575, RX-V675, RX-V775WA (YWA-10 is included with the RX-V775WA)
HTR-4065, HTR-7065
RX-A720, RX-A820, RX-A1020, RX-A2020, RX-A3020
RX-V473, RX-V573, RX-V673, RX-V773 (YWA-10 is included in the RX-V773WA)
RX-V671, RX-V871
RX-A710, RX-A810, RX-A1010, RX-A2010, RX-A3010
RX-A1000, RX-A2000, RX-A3000
RX-Z11, RX-V3900, RX-Z7, RX-V2065

[Notice]
*Power to the YWA-10 is supplied when the connected receiver is powered ON.
*Power to the YWA-10 can be supplied when the connected AV receiver is in the OFF position, only if the AV receiver Network Standby is set to ON. (except for RX-Vx71 or RX-Ax10 series)

Example of connection

YWA-10 allows Yamaha AV products equipped with a NETWORK port and a DC OUT jack (USB) to be connected with a wireless LAN.



Power Requirements

The YWA-10 can be powered via USB from certain Yamaha models. If your Yamaha model does not have an available USB port, the wireless adapter can also be powered by a 5V / 0.5A USB power supply (similar to the wall/USB charger shipped with most mobile phones).
